Ailey Bridge Portable Steel Bridge/steel Truss Bridge For Sale
In China, the technology of Bailey bridges has seen significant development and widespread application. Initially introduced for military use in the 1950s, Bailey bridges have since evolved to serve various civilian purposes. These bridges are now extensively used in emergency rescue operations, traffic engineering, municipal water conservancy projects, and the reinforcement of dilapidated bridges. For instance, during the 2008 Wenchuan earthquake, Bailey bridges played a crucial role in disaster relief efforts, facilitating the transportation of supplies, evacuation of injured people, and the movement of rescue teams.
The design and manufacturing of Bailey bridges in China have also advanced. The country has standardized the production of these bridges, with models like the "321" Bailey bridge being widely produced and used since 1965. Additionally, Chinese companies have developed new types of Bailey bridges, such as the HD200 model, which offers enhanced load-bearing capacity and adaptability to different terrains and environments. These innovations have not only improved the functionality and durability of Bailey bridges but also expanded their application scope in both domestic and international markets.
Specifications:
| CB321(100) Truss Press Limited Table |
| No. | Lnternal Force | Structure Form |
| Not Reinforced Model | Reinforced Model |
| SS | DS | TS | DDR | SSR | DSR | TSR | DDR |
| 321(100) | Standard Truss Moment(kN.m) | 788.2 | 1576.4 | 2246.4 | 3265.4 | 1687.5 | 3375 | 4809.4 | 6750 |
| 321(100) | Standard Truss Shear (kN) | 245.2 | 490.5 | 698.9 | 490.5 | 245.2 | 490.5 | 698.9 | 490.5 |
| 321 (100) Table of geometric characteristics of truss bridge(Half bridge) |
| Type No. | Geometric Characteristics | Structure Form |
| Not Reinforced Model | Reinforced Model |
| SS | DS | TS | DDR | SSR | DSR | TSR | DDR |
| 321(100) | Section properties(cm3) | 3578.5 | 7157.1 | 10735.6 | 14817.9 | 7699.1 | 15398.3 | 23097.4 | 30641.7 |
| 321(100) | Moment of inertia(cm4) | 250497.2 | 500994.4 | 751491.6 | 2148588.8 | 577434.4 | 1154868.8 | 1732303.2 | 4596255.2 |
| CB200 Truss Press Limited Table |
| NO. | Internal Force | Structure Form |
| Not Reinforced Model | Reinforced Model |
| SS | DS | TS | QS | SSR | DSR | TSR | QSR |
| 200 | Standard Truss Moment(kN.m) | 1034.3 | 2027.2 | 2978.8 | 3930.3 | 2165.4 | 4244.2 | 6236.4 | 8228.6 |
| 200 | Standard Truss Shear (kN) | 222.1 | 435.3 | 639.6 | 843.9 | 222.1 | 435.3 | 639.6 | 843.9 |
| 201 | High Bending Truss Moment(kN.m) | 1593.2 | 3122.8 | 4585.5 | 6054.3 | 3335.8 | 6538.2 | 9607.1 | 12676.1 |
| 202 | High Bending Truss Shear(kN) | 348 | 696 | 1044 | 1392 | 348 | 696 | 1044 | 1392 |
| 203 | Shear Force of Super High Shear Truss(kN) | 509.8 | 999.2 | 1468.2 | 1937.2 | 509.8 | 999.2 | 1468.2 | 1937.2 |
| CB200 Table of Geometric Characteristics of Truss Bridge(Half Bridge) |
| Structure | Geometric Characteristics |
| Geometric Characteristics | Chord Area(cm2) | Section Properties(cm3) | Moment of Inertia(cm4) |
| ss | SS | 25.48 | 5437 | 580174 |
| SSR | 50.96 | 10875 | 1160348 |
| DS | DS | 50.96 | 10875 | 1160348 |
| DSR1 | 76.44 | 16312 | 1740522 |
| DSR2 | 101.92 | 21750 | 2320696 |
| TS | TS | 76.44 | 16312 | 1740522 |
| TSR2 | 127.4 | 27185 | 2900870 |
| TSR3 | 152.88 | 32625 | 3481044 |
| QS | QS | 101.92 | 21750 | 2320696 |
| QSR3 | 178.36 | 38059 | 4061218 |
| QSR4 | 203.84 | 43500 | 4641392 |
Advantage
Possessing the features of simple structure,
convenient transport, speedy erection
easy disassembling,
heavy loading capacity,
great stability and long fatigue life
being capable of an alternative span, loading capacity
Product Tags:
|
|

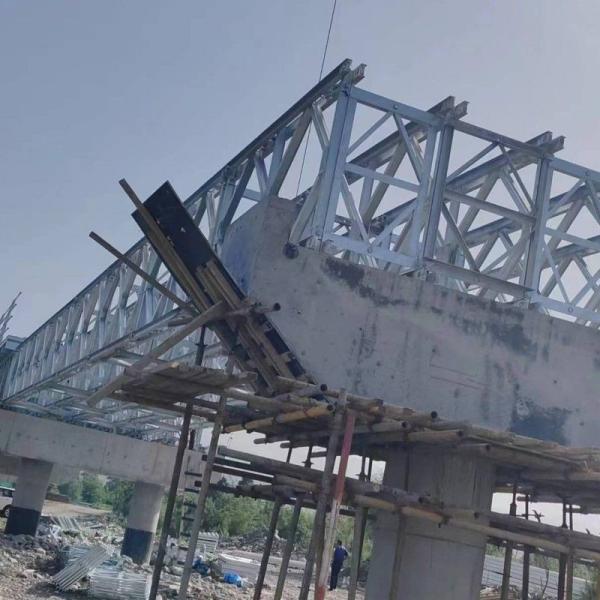

Bailey Bridge Portable Steel Bridge / Steel Truss Bridge For Sale Images
|
